Description

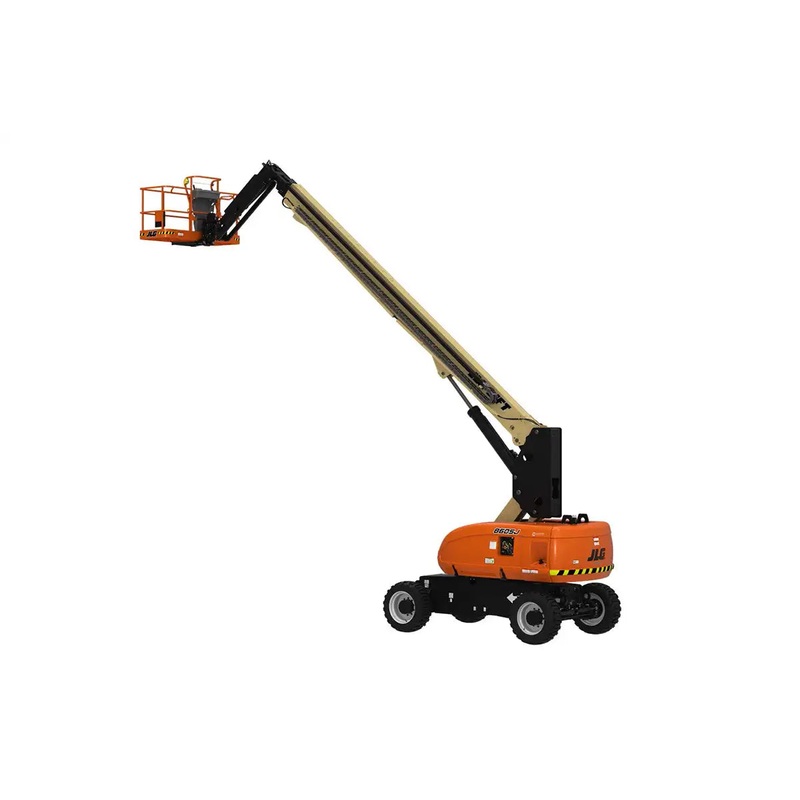

JLG 860SJ STRAIGHT BOOM 4×4 Diesel
- w/Foam Filled Tires & Skyguard
- DIMENSIONS- Stowed L= 40’/ W= 8′ 2″/ H= 9′ 8″
- WEIGHT- 36,840 lbs.
- PLATFORM HEIGHT- 86′ Max.
- HORIZONTAL REACH- 75′ Max.
- PLATFORM DIMENSIONS- 36″ x 96″
- PLATFORM CAPACITY- 500 – 750 lbs. (Height-Reach Dependent)
- PLATFORM ROTATION- 180
- JIB RANGE- 6’/ 130 (+70 to – 60) Vertical
- TURNTABLE ROTATION- 360
- TAIL SWING- 4′ 8″
- TURN RADIUS- 12′ 6″ Inside/ 19′ 8″ Outside
- TRAVEL SPEED- 3.5 MPH -Stowed-
- DRIVE- 4 Wheel
- TIRES- Foam Filled All Terrain 15-625
- GRADEABILITY- 45% -Stowed Only-
- GROUND CLEARANCE- 11″
- ENGINE- DEUTZ..TD2.9L4 Tier 4 Final Diesel 67-HP
- FUEL CAPACITY- 31 Gallons
