Description

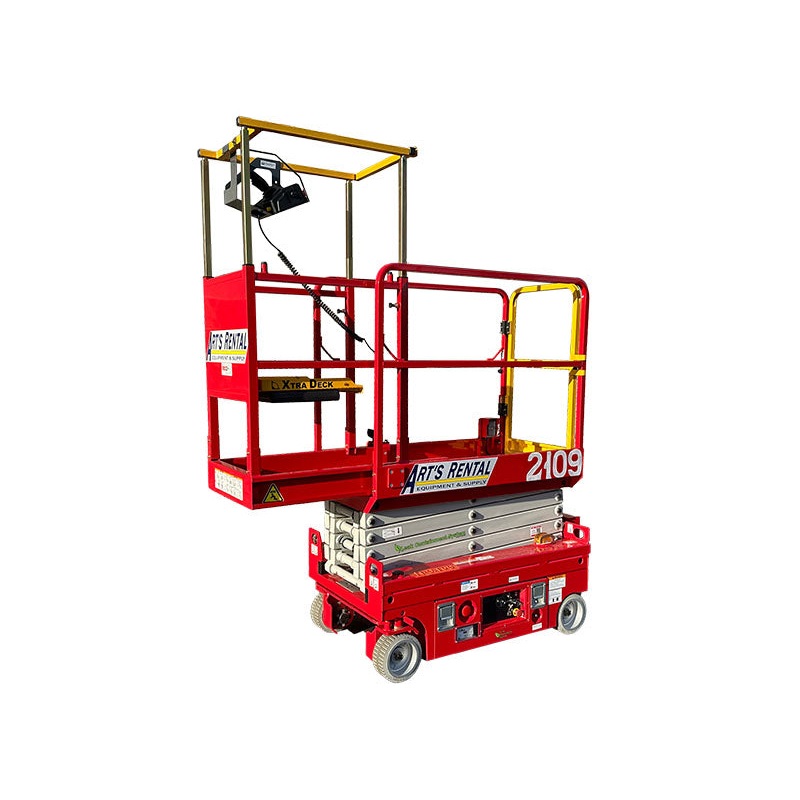

MODEL- MEC MICRO19-XD SCISSOR LIFT Electric w/Leak Containment System
- XTRA-DECK- Additional 20″ of Height to Roll-Out Deck
- DIMENSIONS- L= 60″/ W= 32″/ H= 79″ Rails up 39″ To Platform Floor
- WEIGHT- 2,820 lbs.
- HEIGHT RAISED- 18′-4″ @ Platform Indoors 13′ @ Platform Outdoors
- HEIGHT LOWERED- 39″ @ Platform
- LIFT CAPACITY- 500 lbs. / 250 lbs. On Extension / 250 lbs. On Xtra-Deck
- PLATFORM DIMENSIONS- W= 27.5″/ L= 54″ + 24″ Extension
- DRIVE SPEED- 0-2.5 MPH (Joystick Controlled)
- GRADEABILITY- 25% (STOWED ONLY-NOT RAISED)
MODEL- SKYJACK SJ3219 MICRO- SCISSOR LIFT Electric w/Leak Containment System
- Optional- XSTEP 19″ Raised Platform
- DIMENSIONS- L= 60″/ W= 32″/ H= 79″.
- WEIGHT- 2,675 lbs.
- HEIGHT RAISED- 18′-1″ @ Platform Indoors… 16′ @ Platform Outdoors
- HEIGHT LOWERED- 39″ @ Platform
- LIFT CAPACITY- 500 lbs. / 220 lbs. On Extension / 250 lbs. On XSTEP
- PLATFORM DIMENSIONS- W= 27.5″/ L= 60″ + 20″ Extension
- DRIVE SPEED- 0-2.1 MPH (Joystick Controlled)
- GRADEABILITY- 25% (STOWED ONLY-NOT RAISED)
