Description

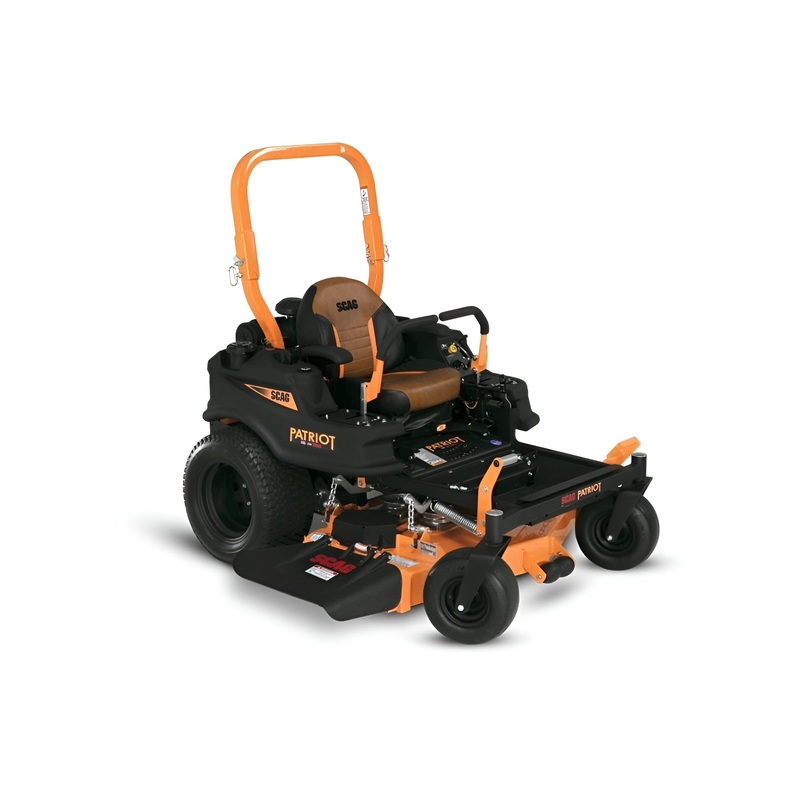

52″ Hero Cutter Deck, 27 HP Briggs CXi Series – V-Twin
FEATURES
- Command perfection – DEEP, FABRICATED, AND WELDED CUTTER DECKS: Heavy-duty Hero Cutter Deck design and construction yield an excellent quality-of-cut. Deep design handles lots of grass at higher speeds. Heavy-duty, aluminum, sealed ball bearing, blade-drive spindles provide reliable performance season after season.
- Ogura PTO Clutch Brake – Strong, Adjustable Clutch for Long Life: The Ogura GT2 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 108 ft. lb. of holding strength, and an adjustable air gap for long life.
- Foot-Pedal Parking Brake – Stay in Control: Foot-operated parking brake activates a disc-brake system, allowing the parking brake to be engaged without taking your hands off of the steering controls. Ausco disc brakes provide reliable performance.
- Iso-Mounted Footplate – Crank Up the Comfort: Pierced, extruded-steel footplate is rubber iso-mounted for enhanced comfort.
- Low-Maintenance Mower Design – More Uptime: Fewer grease points increase operator convenience and ease-of-ownership.
- Hydro-Gear ZT-3100 / ZT-3400 Transaxles – Speeds Up To 10 MPH (SPZ61) / 8.5 MPH (SPZ52): The ZT drive systems’ dual hydro transaxles with all-metal gears and spin-on oil filters deliver smooth, solid power to the drive wheels. Large cooling fans keep temperatures low and extend component life.
- Suspension Seat – Ride in Comfort: The torsion-spring suspension seat adjusts to each operator’s weight, is contoured and features armrests, all to provide superior comfort.
- High-Strength Steel Frame – Solid Design for Years of Dependable Service: Tubular-steel main frame delivers unmatched strength and longevity.
- Powerful and Efficient Engine Options – Reliable Power, Up To 26 HP: Choose from a Briggs Vanguard, Kawasaki FX or a Kohler Command PRO air-cooled, V-twin engine.
SPECIFICATIONS
- Description: 52″ Hero Cutter Deck, 27 HP Briggs CXi Series – V-Twin
- Total Fuel Capacity: 6.5 gallons
- Drive Tires: 22″ x 10.5″-12″ (52″); 24″ x 12″-12″ (61″)
- Caster Tires: 13″ x 6.5″-6″
- Seat: Torsion-spring suspension seat
- Drive System Type: Hydro-Gear ZT3100 Transaxle (52″); Hydro-Gear ZT3400 Transaxle (61″)
- Pumps: ZT3100 Internal Pump: 10 cc (52″); ZT3400 Internal Pump: 12 cc (61″)
- Motors: Internal Motor: 16 cc
- Forward Ground Speed: 8.5 mph (52″); 10 mph (61″)
- Reverse Ground Speed: 5 mph
- Parking Brake: Foot-operated pedal
- Cutting Widths: 52″ and 61″
- Type: Hero Cutter Deck
- Cutting Height: 1.5″ to 5″ in .25″ increments
- Deck Lift: Foot-operated pedal
- Construction: Dual-plate cutter deck constructed of 2 steel plates. Reinforcement plate at cutter deck spindles.
- Spindles: Aluminum housing with sealed ball bearings.
- Blade Engagement: Ogura GT2 (108 ft lb); Adjustable air-gap for extended life.
DIMENSIONS
- Length: 73″
- Width (chute down): 64.5″
- Width (chute in transport position): 53″
- Height (ROPS folded): 46.5″
- Height (ROPS up): 61″
- Weight: 907-911 lb
ACCESSORIES
- 2-Bag Spindle Driven Grass Catcher
- 2-Bag Grass Catcher
- Fabric Bag Grass Catcher
- Hurricane Mulch System
- Mulch Plate
- Tiger Stripe Kit
- Light Kit
- Trailer Hitch
- Chrome Wheel Covers
- Flat-Free Caster Tire
- Blade Buddy
