Description

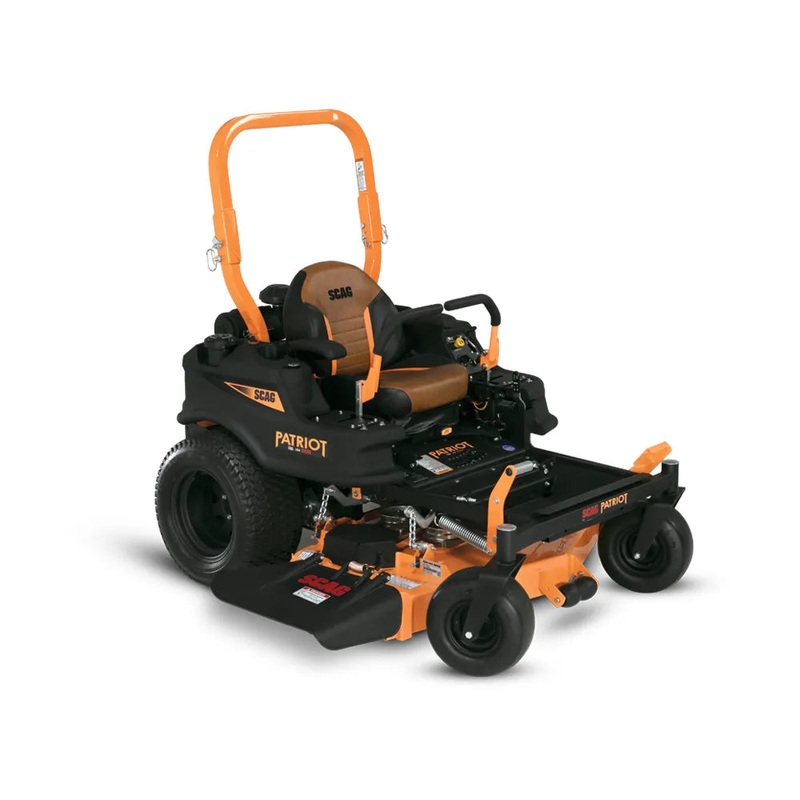

Built to deliver low-maintenance and high-performance operation, the Patriot makes a statement; it says youre a hardworking lawn care professional that believes in getting a job done right. In other words, this machine is built to make money and leave your customersand their neighborssaluting your handiwork.
Features
Solid, Forged Rotor
A one-piece, solid, forged rotor means no chance of internal parts separating. The rotors also have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.
High-Temperature, Long-Life Grease
All models include our special long-life grease which has shown a significant improvement in life over other standard high-temperature greases.
Adjustable Air Gap
When the rotor and armature have worn away, a simple adjustment can be made to bring the clutch back into specification.
Specifications
General
- Total Fuel Capacity: 6.5 gallons
- Drive Tires: 22″ x 10.5″-12″ (52″), 24″ x 12″-12″ (61″)
- Caster Tires: 13″ x 6.5″-6″
Seat and Suspension
- Seat: Torsion-spring suspension seat
Drive System
- Drive System Type: Hydro-Gear ZT3100 Transaxle (52″), Hydro-Gear ZT3400 Transaxle (61″)
- Pumps: ZT3100 Internal Pump (10 cc), ZT3400 Internal Pump (12 cc)
- Motors: Internal Motor (16 cc)
Performance
- Forward Ground Speed: 8.5 mph (52″), 10 mph (61″)
- Reverse Ground Speed: 5 mph
Braking
- Parking Brake: Foot-operated pedal
Deck
- Cutting Widths: 52″, 61″
- Type: Hero Cutter Deck
- Cutting Height: 1.5″-5″ in .25″ increments
- Deck Lift: Foot-operated pedal
Construction
- Deck Construction: Dual-plate cutter deck with 2 steel plates, reinforcement plate at spindles
- Spindles: Aluminum housing with sealed ball bearings
Blade Engagement
- Blade Engagement: Ogura GT2 (108 ft lb)
- Adjustable air-gap for extended life
| Height | Weight | Width | Length |
|---|---|---|---|
| 911 Pounds | 73 Inch |
