Description

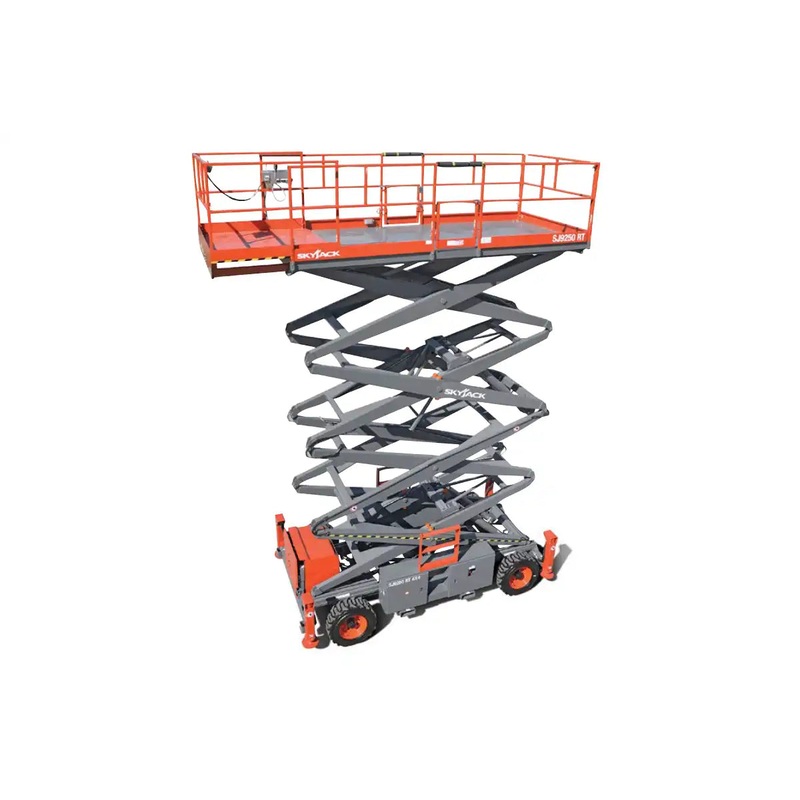

MODEL- SKYJACK..9250 R/T SCISSOR LIFT
- DIMENSIONS- L= 176″/ W= 92″/ H= 79″@ Platform/ 90″ Rail Down/ 124.5″ Rail Up
- WEIGHT- 15,200 lbs.
- HEIGHT RAISED- 50′ @ Platform/ 53′ 9.5″ @ Guardrail
- LIFT CAPACITY- 1000 lbs. On Platform – 500 On Extension
- PLATFORM DIMENSIONS- W= 74″ (6′ 2″)/ L= 168″ (14′)/ Extension= 60″
- GUARDRAIL HEIGHT- 45.5″
- TRAVEL SPEED- 2 MPH Stowed/ .6 MPH Raised (Max Drive Hgt.= 30′)
- DRIVE- 4-WD
- GROUND CLEARANCE- 8″
- GRADEABILITY- 30% (STOWED ONLY-NOT RAISED)
- TURN RADIUS- 301″(25′ 1″) Outside
- ENGINE- KUBOTA..Diesel
