Description
Product Highlights

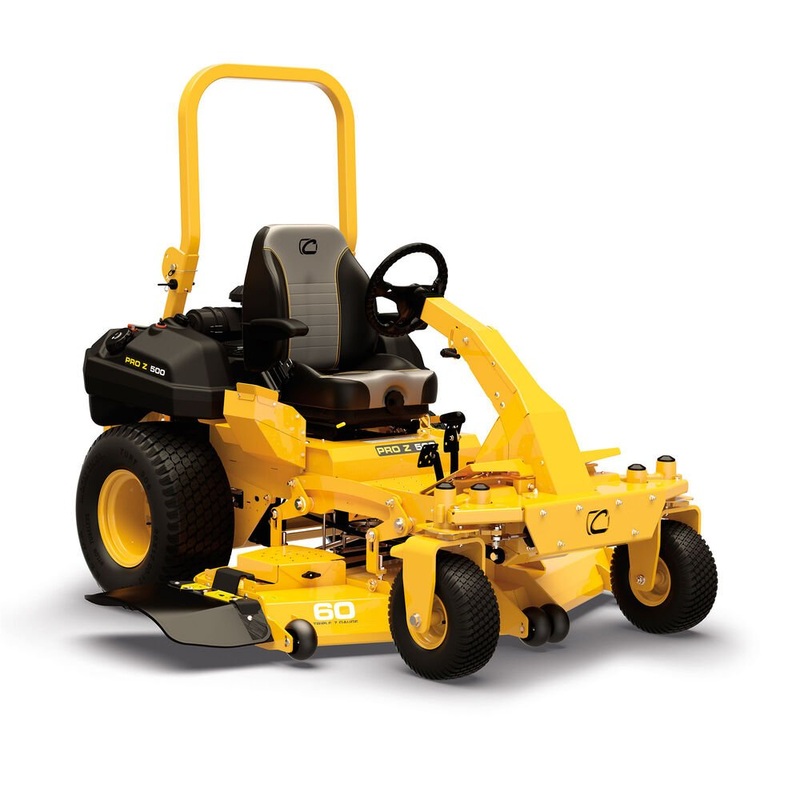

- Cub Cadet’s full commercial-grade powerful and productive steering wheel commercial zero turn mower.
- 27 HP Kawasaki FX850v (852cc) engine and 12cc Parker HTJ transmission
- 3-year limited commercial warranty (no hour limitations) and 5 year / 1,750 hour limited deck construction warranty
Product Specifications
Engine
- Engine Brand:Kawasaki
- Engine Model:FX Series
- Engine Model Number:850V
- Engine Displacement:852cc
- Engine Output:27HP
- Fuel Tank Capacity:Dual 7.45 gal. US (28.2 L)
- Cylinders:Twin
- Engine Start:Ignition Key
- Engine Oil Capacity2.0 qt. US (1.89 L)
- Lubrication:Fully pressurized
- Charging System:15 amp regulated
- Fuel Gauge:Dial
- Choke:Separate Choke
- Air Filter:High Density
- Oil Filter:Yes
- Fuel Delivery:Carburetor
Drive System
- Transmission:Parker HTJ Series, 12cc pump / 260cc wheel motor
- Forward Speed:10 mph / 16 km/h
- Reverse Speed:5 mph / 8km/h
Cutting Deck
- Deck Cutting Width:60 in
- Deck Material:fabricated 7ga. (.187) steel shell
- Deck Engagement:(PTO)electronic fingertip engagement pto
- Deck Construction:7ga. top plate 7ga. bottom reinforcement rolled leading edge
- Spindle Construction:8″ sealed cast aluminum housing (maintenance-free)
- Blade(s):3 high-lift Marbain blades / 18,500 fpm (approx.)
- Cutting Height Range:1 to 5 in 1/4 increments
- Anti-Scalping:2 front deck gauge wheels
- Deck Positions:Foot pedal with spring assist 16 Positions
Warranty
- Deck Shell Warranty:5 year / 1,750 hour limited deck construction warranty
- Commercial Warranty:3 year / no hour limit commercial warranty
Chassis
- Frame:Fully welded, full-length 3/8 x 5″ laser cut steel / integrated tie-down slots
- Front Axle:2″ x 3″ solid axle tube
- ROPS:2″ x 2″ spring-latch tool-less foldable 3 position
- Bumper:5/16″ Thick Steel rear engine guard/pre-drilled mounting points for attachments with integrated rear hitch
- Yokes:1/2″ thick steel front yokes
Controls
- Cruise Control:NA
- Brakes:Hand-operated lever with integrated hydro pump release lever
- Steering Control:High Performance Steering Wheel with electronic power steering & Foot-pedal Control
Comfort
- Seat Type:Cushion with seat belt
- Armrests:Standard
- Seat Suspension:High-back dial suspension with EVC
- Seat Adjustment:Angle back adjust
Wheels
- Rear Tires:24″x12″-12″
- Front Tires:15″x6″-6″Kenda K505
- Tire Tread:Turf Tread
Dimensions
- Dimensions L/W/H:84″ L x 56″ W x 50″ H
- Weight (approx.):1424 lbs.
Additional Specifications
- Hour Meter:Crew Boss all functions
- Discharge Chute:High-density, impact-resistant rubber
- Cup Holder:Intergrated into Side Pod
- Model Number:53TIHJUV050
