Description
Product Highlights
Very powerful clearing saw for full-time spacing

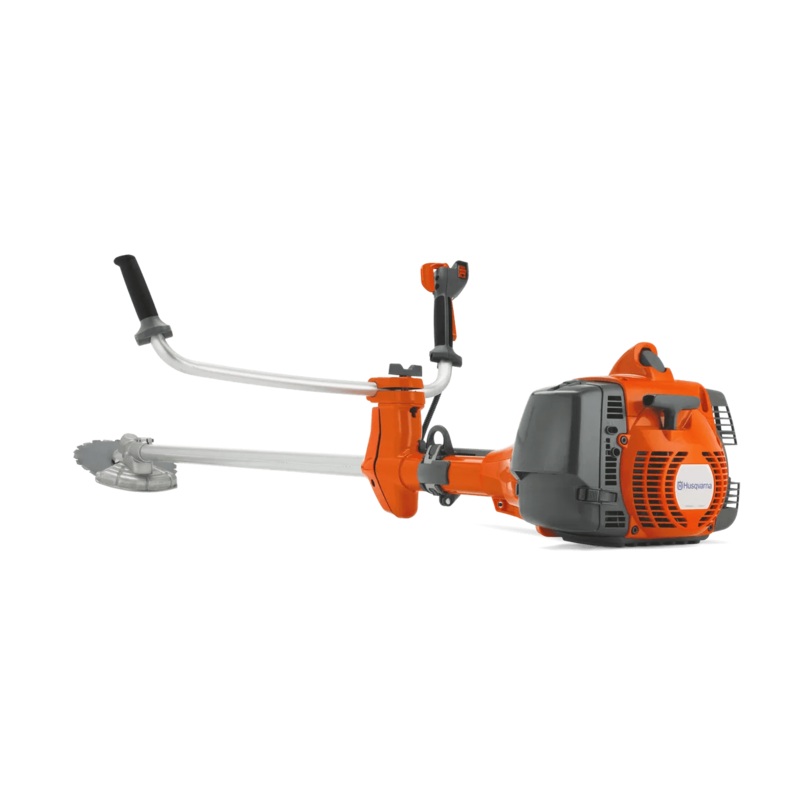

Husqvarna 555FX is a very powerful clearing saw developed for full time spacing tasks in tough conditions. The X-Torq engine provide raw power, rapid acceleration and excellent fuel economy. Short tube and bevel gear angled 24 degrees simplifies directional felling in dense forests. Very low vibrations thanks to LowVib. Delivered with Balance XT harness.
Specifications
| Engine | Scarlett 225-24 (1″), US50 ex LowesSKU: 966629106 |
| Output shaft power1 | 3.8 hp |
|---|---|
| Cylinder displacement | 3.3 cu.inch |
| Fuel tank volume | 37.2 fl oz |
| Fuel consumption | 480 g/kWh |
| Maximum power speed | 9,000 rpm |
| Idling speed | 2,800 rpm |
| Maximum rpm output shaft | 10,500 rpm |
| Clutch engagement speed (120) | 5,700 rpm |
| Electrode gap | 0.02 in |
| Ignition module air gap | 0.01 in |
| Torque, max. | 3.5 Nm |
| Torque, max. at rpm | 6,900 rpm |
| Equipment | |
| Saw blade | Scarlett 225-24 |
| Harness | Balance XT |
| Transmission | |
| Gear ratio | 1.29 |
| Drive gear angle | 24 |
| Dimensions | |
| Weight (excl. cutting equipment) | 19.6 lbs |
| Tube diameter | 1.38 in |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 117 dB(A) |
| Sound pressure level at operators ear | 103 dB(A) |
| Vibration | |
| Equivalent vibration level (ahv, eq) left handle | 2.1 m/s |
| Equivalent vibration level (ahv, eq) right handle | 2.3 m/s |
| Emission | |
| Exhaust emissions (CO EU V)2 | 1,000 g/kWh |
| Lubricant | |
| Lubricant type (bevel gear) | Biodegradable grease |
