Description

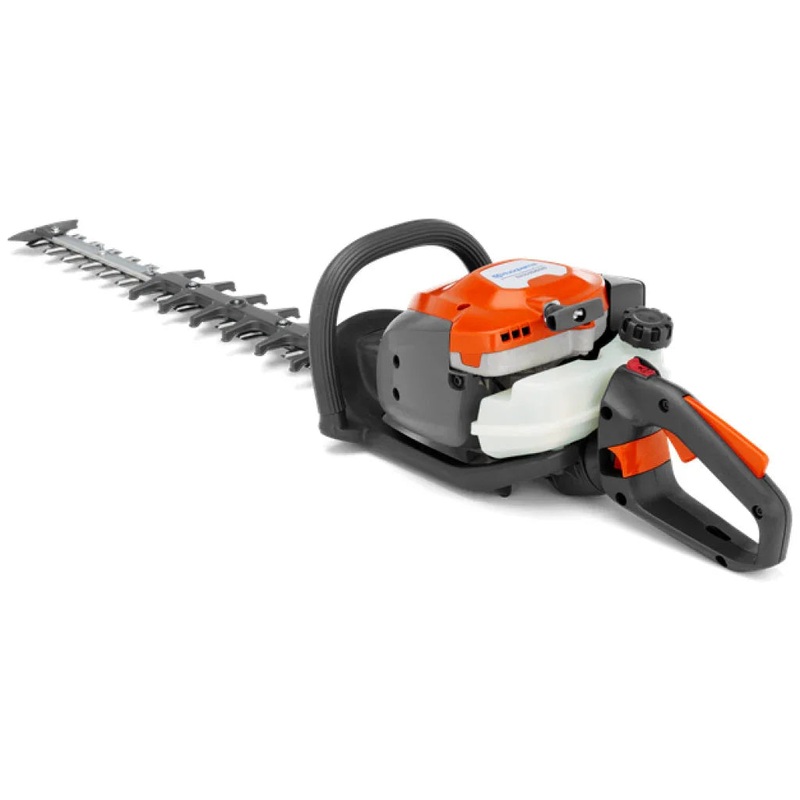

522HD60S
A robust, 21.7cc, double-sided hedge trimmer with a 24″ cutter bar for trimming jobs. Reliable and durable construction guarantee long maintenance and service intervals. The multi-position handle and low weight provide excellent handling, while the high capacity, professional knife blades, open blade guard and impressive power output allows for high productivity.
Specification
Capacity:
- Cutting speed: 4,400 cuts/min
Engine:
- Cylinder displacement: 1.3 cu.inch
- Output shaft power: 0.8 hp
- Fuel tank volume: 15.2 fl oz
- Fuel consumption: 620 g/kWh
- Maximum power speed: 7,800 rpm
- Electrode gap: 0.02 in
- Idling speed: 3,000 rpm
- Spark Plug: NGK CMR6A
Equipment:
- Knife length: 24 in
- Teeth opening: 1.2 in
Dimensions:
- Product size length: 43.5 in
- Weight: 11 lbs
Sound and noise:
- Sound power level, guaranteed (LWA): 102 dB(A)
- Sound pressure level at operator’s ear: 93 dB(A)
Vibration:
- Equivalent vibration level (ahv, eq) rear handle: 2.5 m/s
- Equivalent vibration level (ahv, eq) front handle: 2.8 m/s
Transmission:
- Gear ratio: 4.09
Emission:
- Exhaust emissions (CO EU V): 1,344 g/kWh
