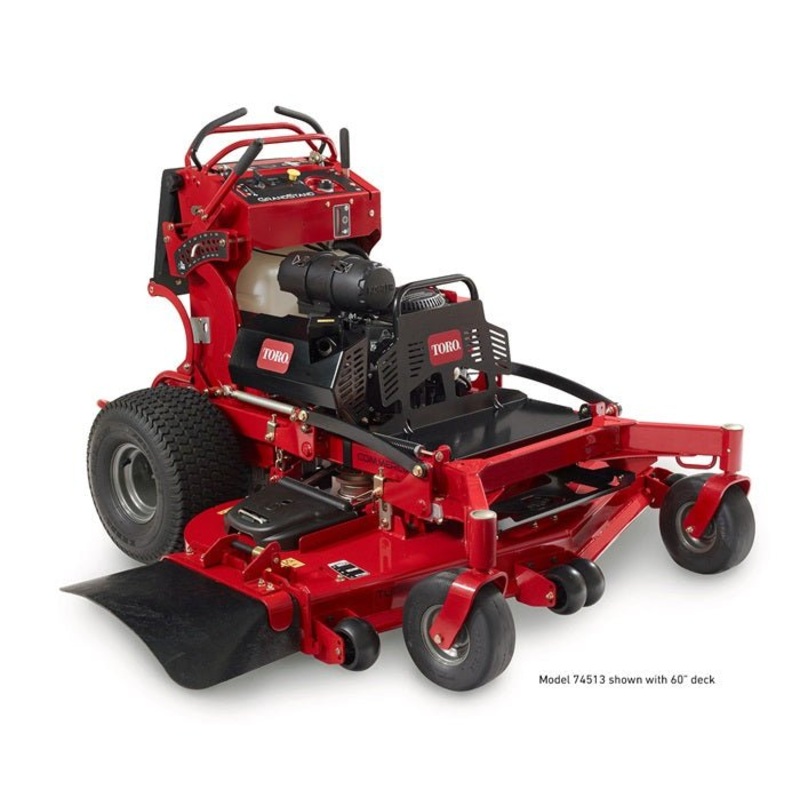

Description
Product Highlights
- Improve productivity with easy access on and off the machine with up to 10.5 gallons of fuel capacity to mow longer with fewer stops.
- Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
- Toro’s foldable operator platform instantly converts the GrandStand to a walk-behind. It easily lowers back down when its time to ride saving time, money and trailer space by eliminating the need to switch mowers.
- Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
Specifications
- Engine
23.5 hp* Kawasaki FX730V 726cc - Fuel Capacity
Gas/10.5 gal (39.7 L) - Cutting Width
60″ (152.4 cm) - Adjustable Discharge Baffle
Standard, tools-free - Air Filter
Heavy-Duty Canister Air Cleaner - Blade Tip Speed
18,500+ ft/min - Blade Type
.25″ (.6 cm) heat-treated steel - Carrier Frame
3″ x 1.5″ x 12 gauge (7.6 cm x 3.8 cm x 12 gauge) - Caster Tires
11″ x 4″ 5″ (27.9 cm x 10.2 cm 12.7 cm) Flat-Free Semi-Pneumatic - Clutch
Electromagnetic - Deck Design
7-gauge 60″ (152.4 cm) TURBO FORCE w/bull-nose bumper - Discharge Chute
Rubber - Drive System
Unitized Pumps (10cc/rev) & Wheel Motors (10 cir) - Drive Tires
20″ X 10.5″ 8″ (50.8 cm x 26.7 cm 20.3 cm) - Engine Horsepower
23.5 hp* - Engine Displacement
726cc - Ground Speed
Up to 10 mph forward (16.1 km/h) - Height of Cut
1.5″ 5.0″ (2.5 cm 12.7 cm) - Hydraulic Fluid
Premium synthetic - Comfort Platform
Foldable Operator Platform with Suspension - Spindle Bearings
Greaseless ball bearings - Spindle Housing
9″ (22.9 cm) diameter cast aluminum - Steering Controls
Twin lever - Disclaimer
*23.5 HP gross at 3,600 RPM SAE J1940 and SAE J2723, as rated by Kawasaki. As configured to meet safety, emission and operating requirements, the actual engine horsepower on this mower may be significantly lower.
