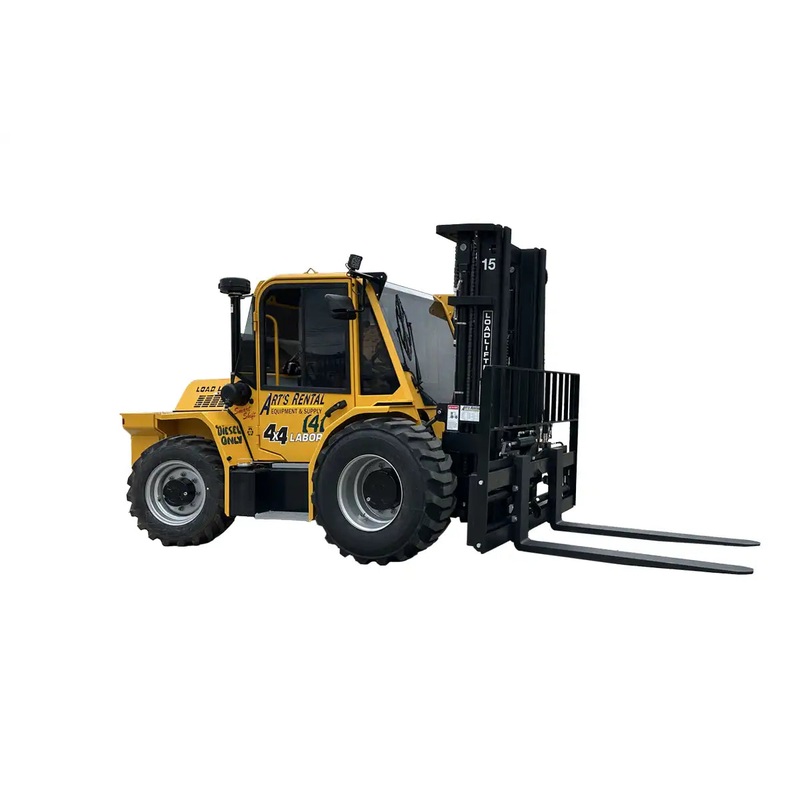

MODEL- LOAD LIFTER – LLL10000 ROUGH TERRAIN FORKLIFT 4WD ======
- With Enclosed Cab & 72″ Fork Positioner
- DIMENSIONS- L= 136″ + Forks 60″/ W= 74″/ H= 93″
- WEIGHT- 16,360 lbs.
- LOAD CAPACITY- 10,000 lbs. @ 24″ Load Center
- LIFT CAP @ FULL HEIGHT- 8,750 lbs. @ 24″ Load Center
- MAX LIFT HEIGHT- 15′
- FREE LIFT- 62.5″
- FORK LENGTH- 60″
- MAST TILT- 20 Forward/ 14 Rearward
- SIDE SHIFT- 3 Stage
- TURN RADIUS- 158″ Outside
- TRAVEL SPEED- Up To 19 MPHGRADEABILITY- N/A
- GROUND CLEARANCE- 9″
- ENGINE- Deutz TD 2.9 Tier 4 Final 74.3 HP
- FUEL CAPACITY- 21.1 Gallons==================================================
