Description

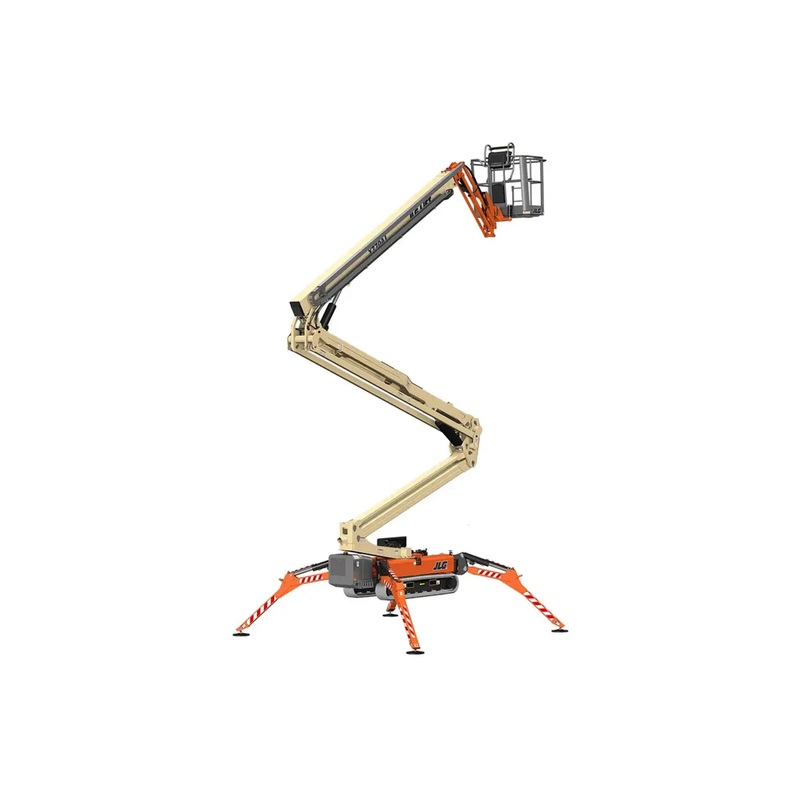

MODEL- COMPACT CRAWLER JLG..X770AJ
- PLATFORM HEIGHT- 77′ 5″
- WORKING HEIGHT- 84′
- HORIZONTAL REACH- 43′
- STOWED HEIGHT- 6′ 7″
- SWING- 360 Non-Continuous
- STOWED LENGTH- 20′ 9″
- JIB RANGE- 89
- WIDTH- 39″ w/ Tracks In. …. 58 ”
- OUTRIGGER FOOTPRINT- 14’L x 13′ 6″W
- GRADE ABILITY- 28%
- PLATFORM CAP- 500 lbs.
- SLOPE TOLERANCE- 16 degrees
- PLATFORM SIZE- 58″ x 30″
- GROUND PRESSURE- 8 PSI @Tracks 65 PSI @ Outriggers
- WEIGHT- 9665 lbs.
- TRACKS- Non Marking
****
