Description

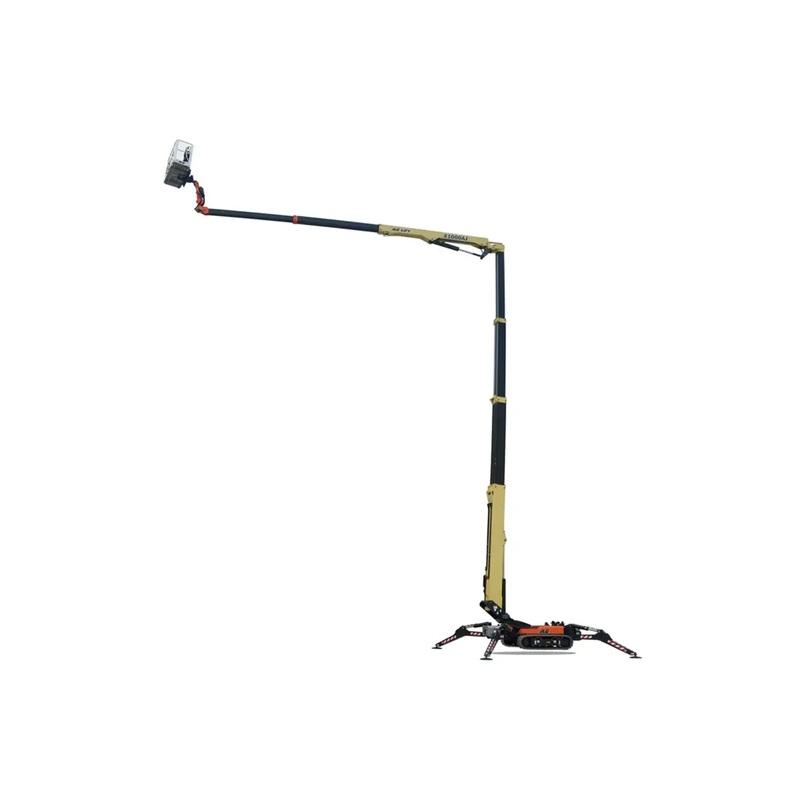

MODEL- COMPACT CRAWLER JLG..X1000AJ
- PLATFORM HEIGHT- 100′
- WORKING HEIGHT- 106′
- HORIZONTAL REACH- 54′ 2″
- UP & OVER REACH- 56’H Up…54’Horiz. Reach
- STOWED HEIGHT- 6′ 6″
- SWING- 360 Non-Continuous
- STOWED LENGTH- 21′ 3″
- JIB RANGE- 180
- WIDTH- 3′ 11″
- OUTRIGGER FOOTPRINT- 20′ 8″L x 16′ 5″W
- GRADE ABILITY- 28%
- PLATFORM CAP- 500 lbs.
- SLOPE TOLERANCE-
- PLATFORM SIZE- 63″ x 28″
- GROUND PRESSURE- 58 PSI @ Outriggers
- WEIGHT- 16,790 lbs.
- TRACKS- Non Marking
****
