Description
Product Highlights

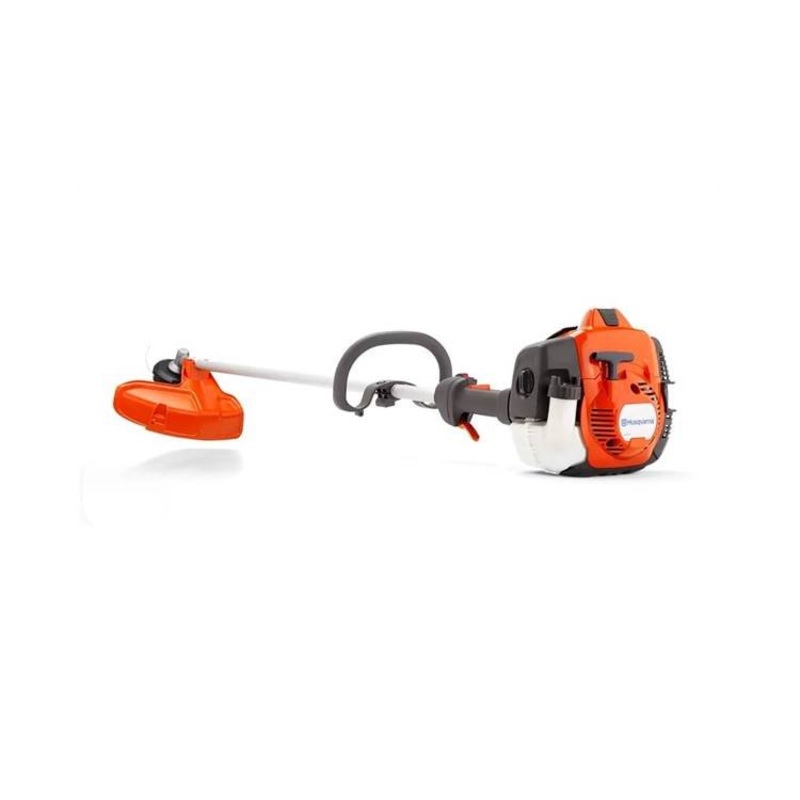

When you reach for Husqvarna’s 525L you’re grabbing superior performance and comfort. As the lightest trimmer in its class*, the 525L is maneuverable and easy to use. The trimmer features powerful X-Torq engine technology that provides fuel savings up to 20% and 60% fewer emissions. Engine power is transferred into superior trimming performance through the durable and low-weight 7-spline solid shaft. Husqvarna’s LowVib design, with rubber isolation in the handle, means the 525L delivers comfortably low vibration levels. For the perfect finish to any job, count on Husqvarna’s 525L. (*Based on weight of tool without fuel. Ratio calculated using weight (lbs.) and engine horsepower. Class defined as pro-grade petrol trimmers with engine displacement in the 20cc to 29cc range.)
Features
- Intuitive controls: Intuitive controls
- X-Torq engine: X-Torq engine cuts emission and fuel consumption
- Auto return stop switch: Auto return stop switch for easy starting
- Air Purge: Air purge for easier cold starting
- Smart Start: Smart Start for easy starting
- Tap ‘n Go: Easy to use trimmer head
- Efficient air filter: Efficient air filter
Specifications
Capacity
Cutting width: 18.1in
Dimensions
Weight (excl. cutting equipment): 9.7 lbs
Product Size, LxWxH: 70.43 x 9.53 x 8.74 in
Tube length: 58.386 in
Tube diameter: 0.94 in
Engine
Cylinder displacement: 25.4 cm
Power output: 1.21 hp
Maximum power speed: 8,500 rpm
Fuel tank volume: 17.25 fl oz
Fuel consumption: 600 g/kWh
Idling speed: 3,000 rpm
Spark plug: NGK BPMR8Y
Electrode gap: 0.03 in
Torque, max. at rpm: 6,000 rpm
Torque, max.: 1.2 Nm
Clutch engagement speed (120): 4,000 rpm
Maximum rpm output shaft: 6,500 rpm
Equipment
Grass blade: —
Harness: —
Saw blade: —
Trimmer head: T35 M10
Lubricant
Lubricant type: Husqvarna 2 stroke or equiv. at 50:1
Sound and noise
Sound pressure level at operators ear: 98 dB(A)
Sound power level, guaranteed (LWA): 107 dB(A)
Transmission
Gear ratio: 19
Drive gear angle: 30
Equivalent vibration level (ahv, eq) left handle: 3 m/s
Equivalent vibration level (ahv, eq) right handle: 2.8 m/s
