Description

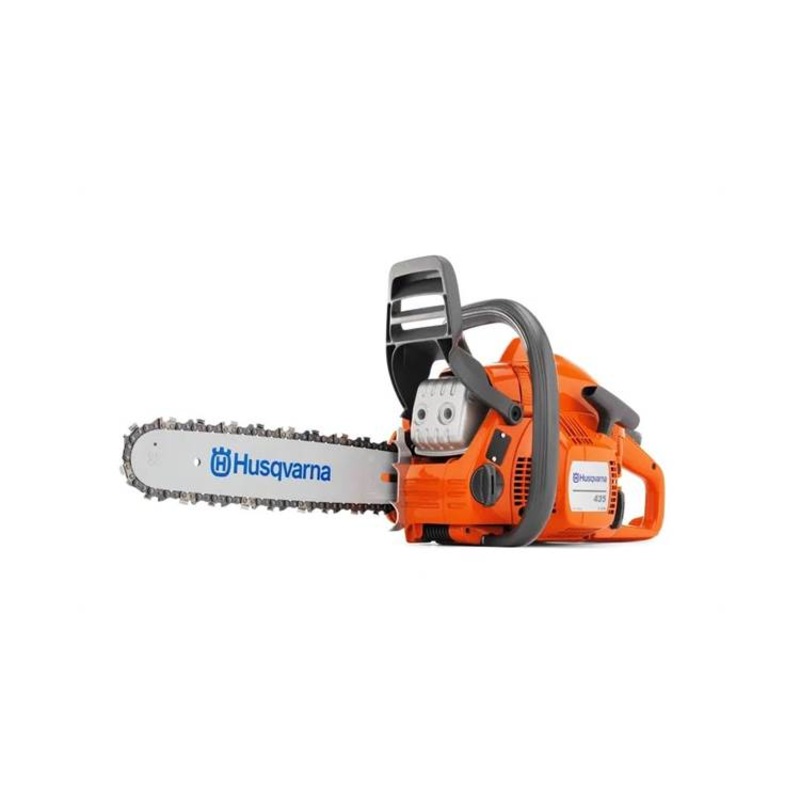

Husqvarna 400 Series chainsaws offer the best starting performance in their class. The Husqvarna 435 has a starter cord that’s easy to pull and an engine that’s quick to start. Features LowVib anti-vibration technology for safe, comfortable control. Powered by an X-Torq engine for reduced fumes and fuel consumption, this superior all-around saw is ready to tackle your next project.
Features
- Flip-up tank cap: Flip-up fuel tank caps are easy to open and secure.
- Quick-release air filter: Quick-release air filter
- Felling marks: Felling marks for correct felling direction
- Smart Start: Smart Start for easy starting
- Air Injection: Less filter cleanings with Air Injection
- X-Torq: X-Torq engine cuts both emissions and fuel consumption.
- Three-piece crankshaft: Maximum durability for tough applications
- LowVib: LowVib sparing the user’s arms and hands
- Visible fuel level: Fuel level window
- Snap-lock cylinder cover: Easy to maintain with snap locked cylinder cover
- Inertia activated chain brake: Increased safety, inertia activated chain brake
- Easy to start: Easy to start
- Air Purge: Air purge for easier cold starting
Specifications
Engine
Power output: 2.2 hp
Cylinder displacement: 40.9 cm
Maximum power speed: 9,000 rpm
Idling speed: 2,900 rpm
Clutch engagement speed (120): 4,300 rpm
Fuel consumption: 652 g/kWh
Electrode gap: 0.02 in
Ignition module air gap: 0.01 in
Oil pump type: Fixed flow
Exhaust emissions (CO2 EU V): 813 g/kWh
Equipment
Bar length (inch): 16 in
Recommended bar length, min-max: 13-18 in
Chain type: SP33G
Gauge: .050″
Pitch: .325″
Sprocket type: Spur 7
Dimensions
Weight (excl. cutting equipment): 9.7 lbs
Lubricant
Oil tank volume: 0.53 US pint
Sound and noise
Sound power level, guaranteed (LWA): 114 dB(A)
Sound power level, measured: 112 dB(A)
Sound pressure level at operators ear: 102 dB(A)
Vibrations
Equivalent vibration level (ahv, eq) front handle: 3.8 m/s
Equivalent vibration level (ahv, eq) rear handle: 4.2 m/s
