Description
Specification

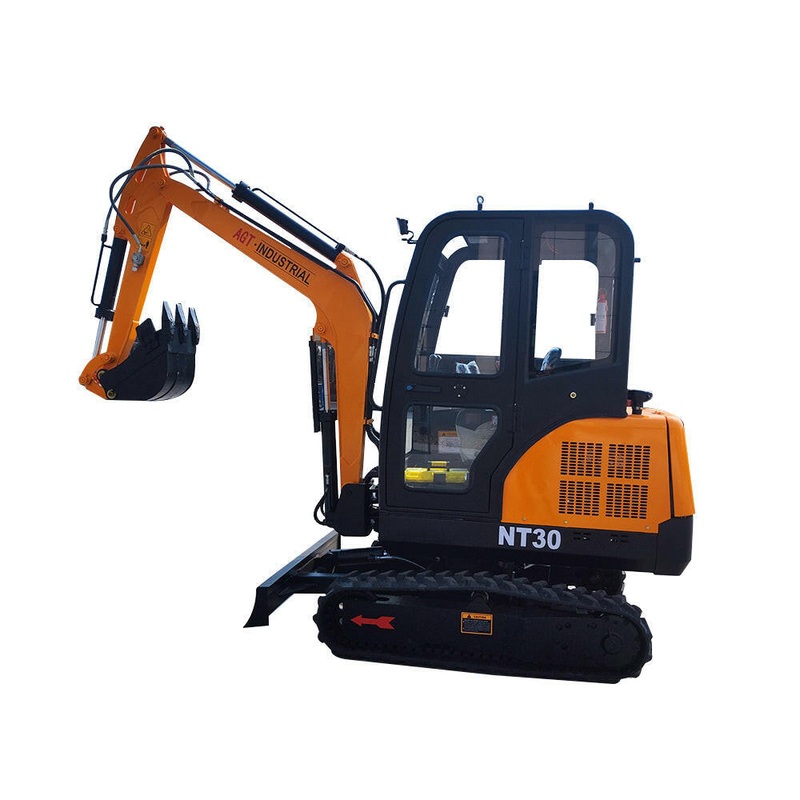

| Name | CrawlerExcavator |
| Model | NT30 |
| Bucket capacity | 0.08m |
| Engine | Kubota1105,18.2kw |
| Walking speed | 2.6Km/h |
| Rotation speed | 10r/min |
| Total length | 4080mm |
| Total width | 1350mm |
| Total height | 2200mm |
| Crawler length | 1900mm |
| Crawler width | 230mm |
| Body width | 1060mm |
| Maximum digging height | 3710mm |
| Maximum dumping height | 2480mm |
| Maximum digging depth | 2250mm |
| Maximum digging radius | 4020mm |
| Platform clearance to ground | 458mm |
| Swing angle | 360 |
| Climbing gradient | 30 |
Products Description
- 3-TonMiniExcavator:Withacompactdesign, 3-tonoperatingweight,andamaximumdiggingdepthof7.38 feet,AGT’slightweightyetpowerfulminiexcavatorisidealforworkinginnarrowdriveways,alleys,backyards,gardens,andothertightspaces.
- SimplifiedSafetyandMaintenance:Ourminiexcavatorsincreasesafetywithinternalhydraulichosestoensurealowerriskofdamage.Rear-openingcompartmentsprovideeasyaccesstocriticalcomponents,minimizingdowntimeandmaximizingoptimaloperationalperformance.
